FabricAir® Combi

Comparison, FabricAir® Combi

Technical Data, FabricAir® Combi
In Sales Catalog (pdf viewer)

All-in-one
Optionally, FabricAir® Combi can be supplied with All-in-One support hoops, which keep the duct open permanently.
ZIPPERS
The sections are assembled with heavy-duty industrial zippers, discretely hidden under an extra seam.
TAG NUMBERS
Each duct section is labeled with a tag number, which indicates the order of assembly. Furthermore, it contains an id-number, which makes the tracking easier.
SAFE MOUNTING
Fabric ducts connect onto sheet metal systems secured with a pinch-down duct belt.
FabFlow™
PerfoFlow™

MeshFlow™

SonicFlow™

OriFlow™

NozzFlow™



FabricAir® Combi

FabricAir® Combi is machine washable and retains its dimensions after washing (max. 0.5% shrinkage). The permeability is uniform (max. 5% variation). The fabric is supplied in nine standard colors and can be dyed with special colors.   FabricAir® Combi 80 and Combi 90 are supplied with a specially developed antimicrobial treatment, which is especially suitable for areas with strict requirements for hygiene.



Comparison








  20 60 70 80 85 90

PROPERTIES SPECIFIC TO EACH FABRIC








    Flame Retardancy FabricAir® Combi 20, 70, 80, 85 and 90 are flame retardant according to a number of standards.
      UL classified product according to the UL 723 standard.
    Permeable Fabric FabricAir® Combi 60, 70 and 80 are permeable fabrics. The duct gently breathes the conditioned air through the full permeable fabric surface ensuring a gentle exit velocity. This avoid condensation.
    No Condensation Full duct surface air leakage on FabricAir® Combi 60, 70 and 80 prevents condensation settling on duct even during extended cooling temperature differences in high humidity areas. Condensation is common in metal-based air ventilation systems but does not form on permeable fabrics.
      Anti Microbial FabricAir® Combi 80 and 90 are treated with an active antimicrobial agent. So, in addition to not providing places where microbes can breed, FabricAir® Combi 80 and 90 also kills microorganisms.


5
yea
r

  Warranty Because of FabricAir® Combi’s exceptional strength, we are able to give it the best warranty in the industry – 10 years non-pro rated.
    Lowest Shrinkage The fabric retains its shape after washing having a maximum shrinkage of just 0.5%. This is the lowest on the market (FabricAir® Combi 60•70•80•85•90).
    Fully Washable FabricAir® Combi is fully washable in a washing machine. This ensures top class hygiene and IAQ improvement.
    Round duct profile available
    Half Round duct profile available (D-shape)
    Quarter Round duct profile available


  Rectangular duct profile available
    Circle section duct profile available
    FabFlow™ Air exits gently through duct surface (Combi 20, 60, 70 and 80).
    PerfoFlow™ Air exits at a medium velocity from the perforations (Combi 85 and 90).
    MeshFlow™ Air exits at a medium velocity from the linear vents (All Combi).
    SonicFlow™ Air exits at a medium to low velocity from the linear perforations (Combi 85 and 90).
    OriFlow™ Air exist at a high velocity from the large orifices (Combi 85 and 90).
    NozzFlow™ Air exits at high velocity from the air directional nozzles (All Combi).

STANDARD FABRIC
COLOURS

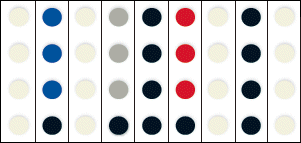

STANDARD ACCESSORY
Accessory colors
used when
combined with a
standard fabric
color
Nozzles
(NozzFlow™)
Sliders
Hooks
Mesh
(MeshFlow™)

The colors shown are only intended as a guide. Please call FabricAir if you require exact color samples.






Technical Data Sheet


  COMBI 20 COMBI 60 COMBI 70 COMBI 80 COMBI 85 COMBI 90

DESCRIPTION Specially woven polyester fabric, designed for use in FabricAir® Dispersion Systems.

Flow models available Fabflow™ Meshflow™ Nozzflow™ Fabflow™ Meshflow™ Nozzflow™ Fabflow™ Meshflow™ Nozzflow™ Fabflow™ Meshflow™ Nozzflow™ Perfoflow™ Meshflow™ Sonicflow™ Nozzflow™ Oriflow™ Perfoflow™ Meshflow™ Sonicflow™ Nozzflow™ Oriflow™

CONSTRUCTION
Weight g/m2
oz/yd2
260
7.67
273
8.02
290
8.50
290
8.50
300
8.80
300
8.80
EN ISO 12127:1997 ASTM D3776-96

Thickness mm
Inch
0.40
0.016
0.45
0.018
0.45
0.018
0.45
0.018
0.45
0.018
0.45
0.018
EN ISO 5084:1996 ASTM D1777-96

Permeability m3/m2/h at 120 Pa CFM/ft2 at 0.5" Static 40 (±5%) 2 (±5%) 40 (±5%) 2 (±5%) 40 (±5%) 2 (±5%) 40 (±5%) 2 (±5%) 0 0 0 0 EN ISO 9237:1995 ASTM D737, Frazier
PROPERTIES
Strength - warp Strength - weft N 2700
900
2700
900
2700
900
270
0 900
2700
900
2700
900
EN ISO
13934-1

Shrinkage % at 40° C % at 104° F Max. 0.5% Max. 0.5% Max. 0.5% Max. 0.5% Max. 0.5% Max. 0.5% EN ISO
5077

Heat Resistance - continuous °C
°F
+14
0 +284
+140
+284
+140
+284
+140
+284
+140
+284
+140
+284

Heat Resistance - softening °C
°F
+235
+455
+235
+455
+235
+455
+235
+455
+235
+455
+235
+455

TREATMENTS/COATINGS -
-
-
-
-
-
Flame retardant
-
-
Flame retardant Antimicrobial
-
Flame retardant
-
Non-permeable
Flame retardant Antimicrobial Non-permeable

CODE COMPLIANCE
DIN 4102 [A2, B1, B2] B1 B2 B1 B1 B1 B1

NF P 92-503 - NF P 92-504 [M0, M1, M2] M1 M2 M1 M1 M1 M1

UL 723/NFPA 90 A [Yes/No] Yes No Yes Yes Yes Yes

ADDITIONAL APPROVALS
Oeko-Tex Approved Approved Approved Approved Approved Approved

DISCLAIMER
FabricAir® believes that all data, statements, technical information, etc., listed in this Technical Data Sheet regarding the product and the use of the product are accurate and reliable. However, the product will only be covered by FabricAir®’s guarantees or warranty if the final use for the product has been approved by FabricAir® in writing. No representative is authorized to approve the final use of the product on behalf of FabricAir®.
