Principles of FlowModels
It is rarely possible to "see" air flow
patterns in a conditioned space unless
smoke is added to the supply air; this
makes it extremely difficult to predict the
required flow model for a new project.
With our 6 new FlowModels which can be
combined with the 6 FabricAir® fabrics in
a broad range of air distribution possibili- |
ties, we no longer have to rely on guess-
work. Using an extensive number of CFD
simulations we have generated a thumbnail
sketch of the general airflow for eachu
FlowModel. You can find these described
on this page including a brief explanation
of the thermodynamic and ventilation
principles. These should be used for
preliminary selection of the required space
flow characteristic. |
|
| FlowModel Comparison |
 FabFlow™
|

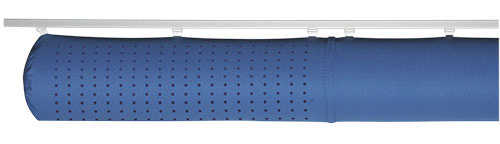

 PerfoFlow™
|

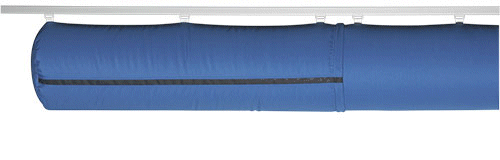

 MeshFlow™
|
 SonicFlow™
|

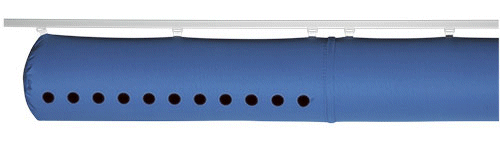

 OriFlow™
|

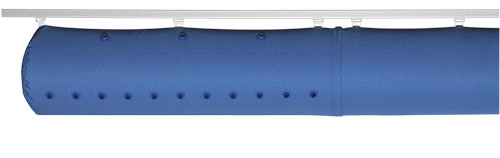

 NozzFlow™
|
 JetFlow™
|
| Flow principle |
Displacement ventilation |
Displacement-/mixing vent. |
Displacement-/mixing vent. |
Mixing ventilation |
Mixing ventilation |
Mixing ventilation |
Mixing or spot ventilation |
| Condition of suppl. air |
Cold |
Isothermal and limited heating |
Cold and hot air |
Isothermal/ limited heating |
Isothermal and hot air |
Cold and hot air |
Cold, hot and isothermal |
| Exit velocity [fpm] |
20 to 40 |
1,400 to 2,600 |
200 to 500 |
1,400 to 2,600 |
2,000 to 3,600 |
1,400 to 4,000 |
1,900 to 3,100 |
| Outlet size |
- |
1/8" to 5/8" |
Mesh |
1/8" to 5/8" |
1" to 5" |
3/4" |
2" to 10" |
| Throw type |
Low |
Medium |
Medium |
Medium |
High |
High |
High |
| Fabric |
Permeable |
Non-permeable |
Permeable |
Non-permeable |
Non-permeable |
Permeable and non-permeable |
Permeable and non-permeable |
| Other |
Even air distribution |
|
|
|
Large air volumes only |
Even air distribution |
Large air volumes only |
| Links for more information, select and click |
Description |
 |
|
|
|
|
|
|
Duct screenshot |
 |
|
|
|
|
|
|
Selection tips |
|
|
