JetFlow™ description

JetFlow™ description		Open in viewer

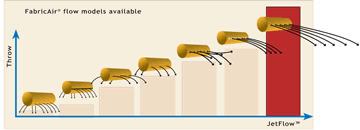

On this page: • advantages • Characteristics - Performance - System design • Installation • Features • Application • examples • Zip-in_JetCap • Technical Data	Fabricair Jetflow - long air throw from a fabric duct. FabricAir flow models, find all.

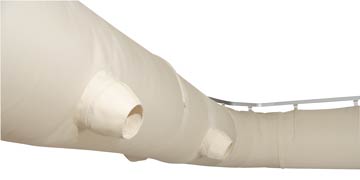

The JetFlow™ advantages Longest throw ever from a fabric duct Precise directional air distribution Applicable to both heating, cooling and ventilation Identical performance to conventional spot diffusers but with more advantage Available in varying diameters which allows for greater flexibility in design Easy to install and NO balancing is necessary Competitively priced when compared to conventional diffusers	FabricAir®’s JetFlow™ with built-in Jet-diffusers provide exceptionally long throws for large areas.
	JetFlow™ is capable of generating exceptional throws through the use of Jet-diffusers in varying diameters. This is particularly useful in warehouses, factories, industrial- and many heavy-duty industrial applications. JetFlow™ is competitively priced when compared with conventional diffusers offering accurate and reliable performance.

Characteristics

Long throw

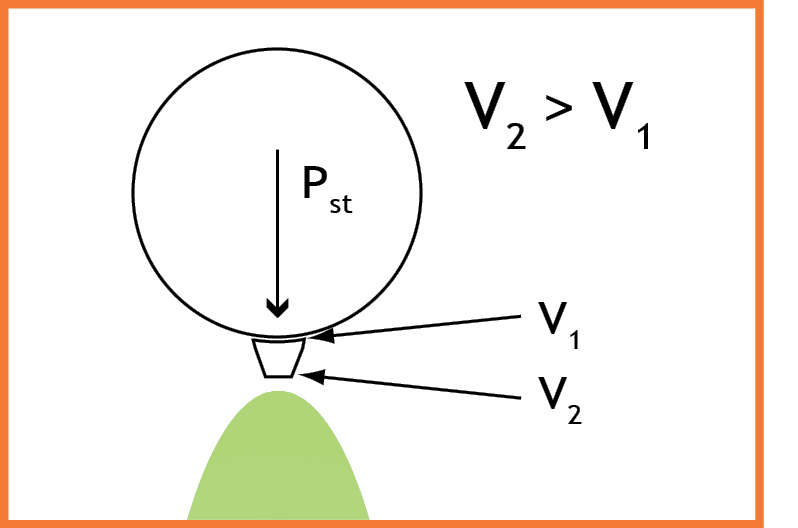

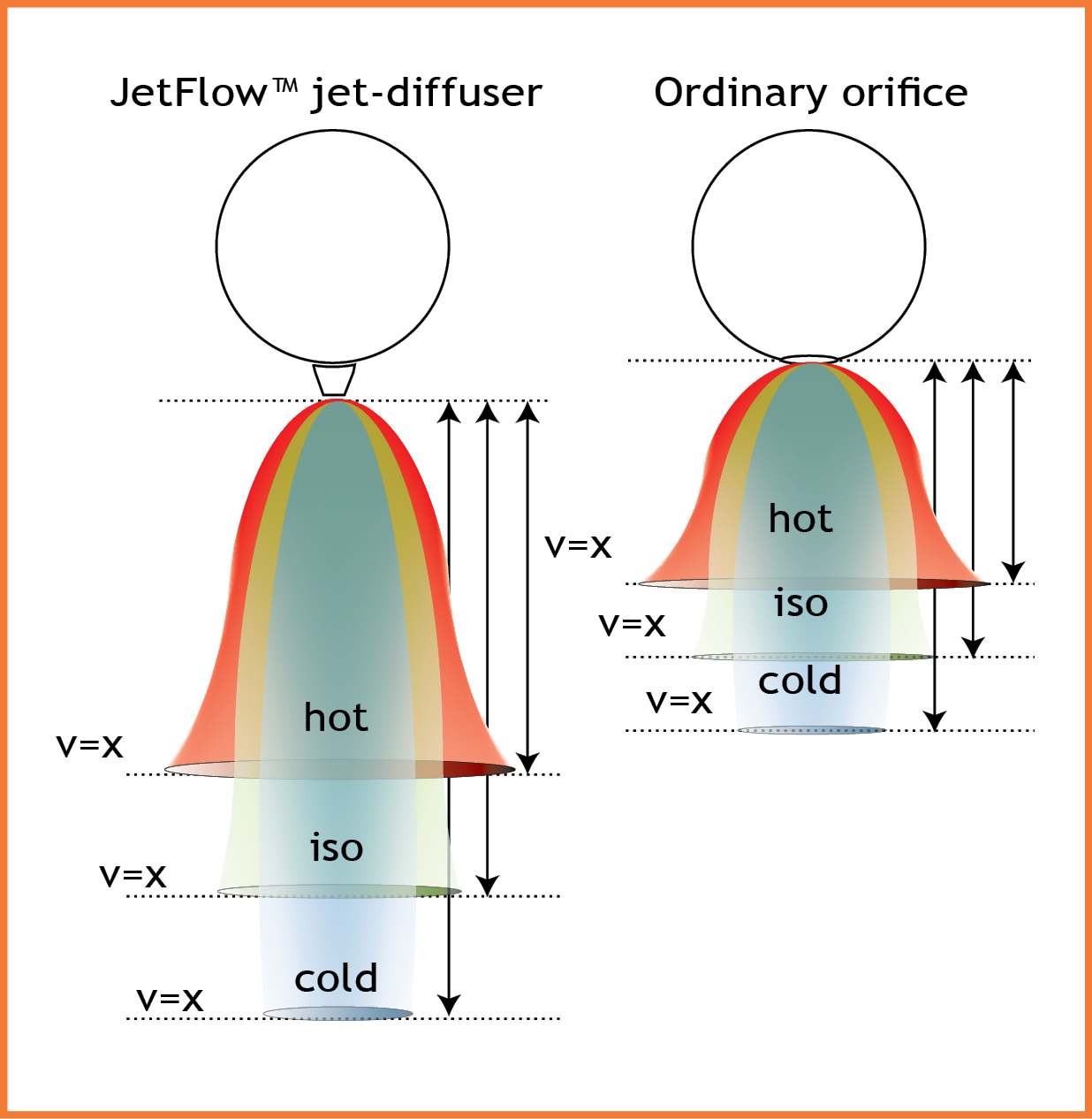

By accelerating the outlet air, FabricAir® JetFlow™ provides a longer throw not usually achieved using a conventional orifice. This allows for longer throws not previously available in fabric duct systems (fig. 3).
Large air volumes
JetFlow™ supply air volumes ranging from 73-2874 m3/h [43–1691 cfm].
Predictable air zones
Jet-diffusers supply a stable air volume calculated by FabricAir engineers to optimize every part of the room.

Hot air

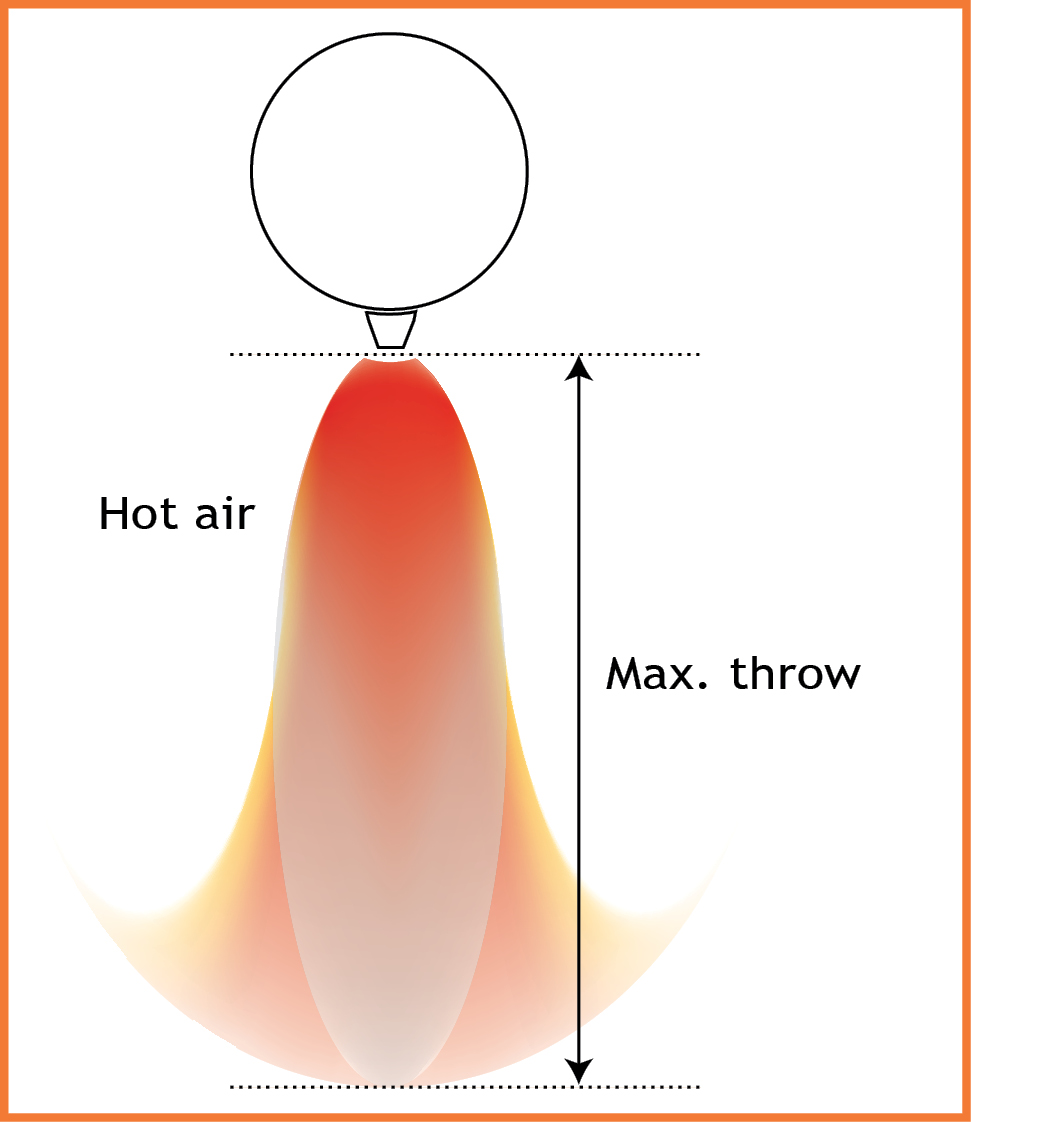

Even in heating applications JetFlow™ can generate very long throws (fig. 5).
Quiet
NC level from 20 to 35.
Accuracy

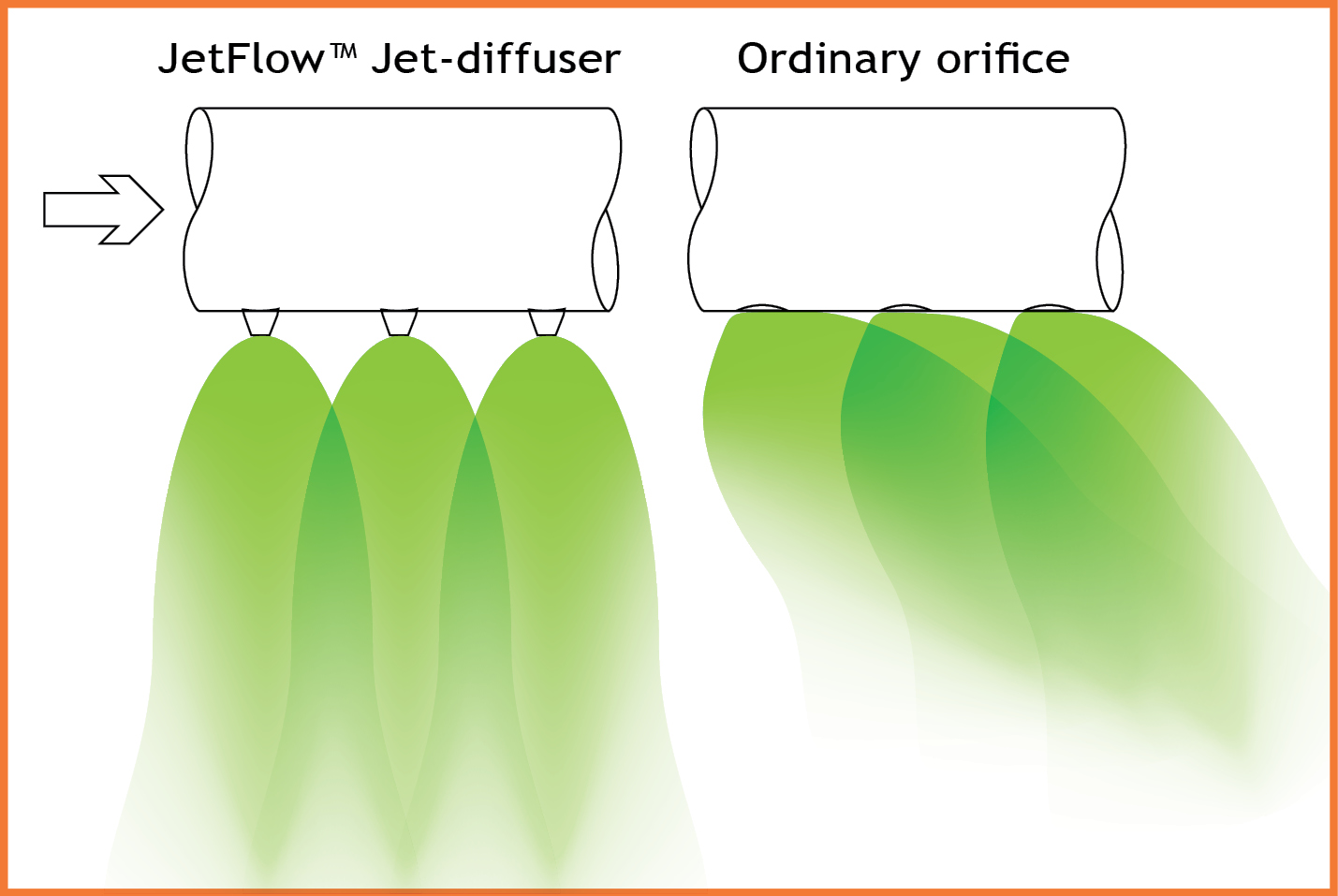

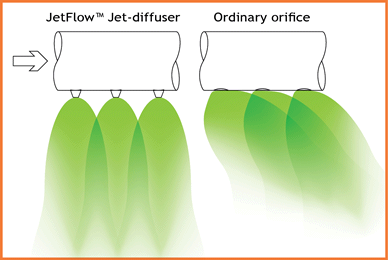

JetFlow™ accelerates and accurately throws the air perpendicular to the duct creating longer throws than conventional orifices (fig. 7).


System design Supply Air JetFlow™ distributes cold, hot and ambient air. Custom Design JetFlow™ is customized by FabricAir® engineers for each project with individualized dimensions, location and number of Jet-diffusers (fig. 4). Flexible position of fabric air JetFlow Rows of Jet-diffusers can be placed anywhere on the circumference of the duct	What is throw length JetFlow™ and NozzFlow™ throw length principles? What is deflection from air distribution ducts?

Installation

Connect with zippers
The Jet-diffusers are easily mounted using zippers.
No balancing required
Both the Jet-diffusers and the duct system are self-balancing and need no extra balancing unlike a conventional diffuser or some competing fabric ducts. Once it is operational, the duct system and the Jet-diffusers are ready to go.

Application examples

Features

Colors
The JetFlow™ Jet-diffusers and the duct are made out of the very same fabric. Colors therefore match (alternative colors are optional).
No condensation
Condensation will not form on Jet-diffusers.
Laundering
JetFlow™ Jet-diffusers are easily unzipped before laundering.

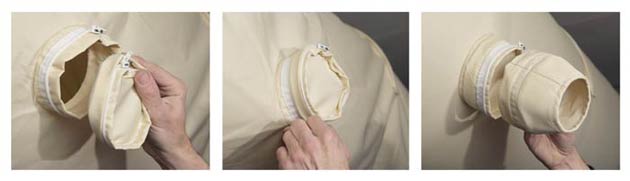

Zip-in JetCap (air barrier)

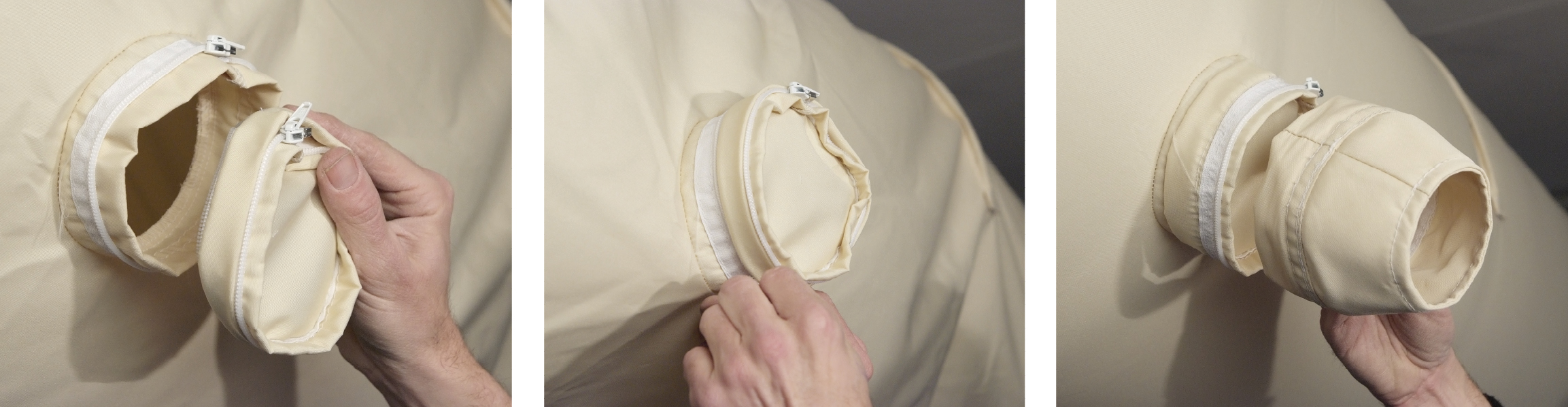

Shut off an individual Jet-diffuser if required (optional) just by inserting a Zip-in JetCap.

A Zip-in JetCap makes it possible
to shut off the Jet-diffuser.

Insert Zip-in JetCap (optional) to shut off.

Zipper for a Zip-in JetCap or Jet-diffuser.

JetFlow™ Jet-diffusers are reinforced for high air velocity.
Designed to always be stretched out.
Sealed seams without the
loss of any fibers.

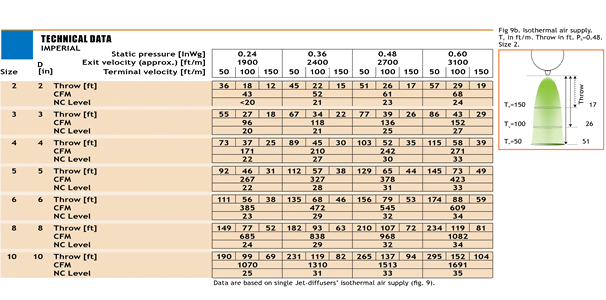

Tehnical Data

JetFlow™ is a Jet-diffuser suitable for supplying air to large areas where long throws and large volumes of air are required. JetFlow™ can be used for isothermal, heating and cooling applications. A JetFlow™ Jet-diffuser accelerates the air velocity providing a longer throw. The number of Jet-diffusers and the diameter and position on the duct are factory engineered.
